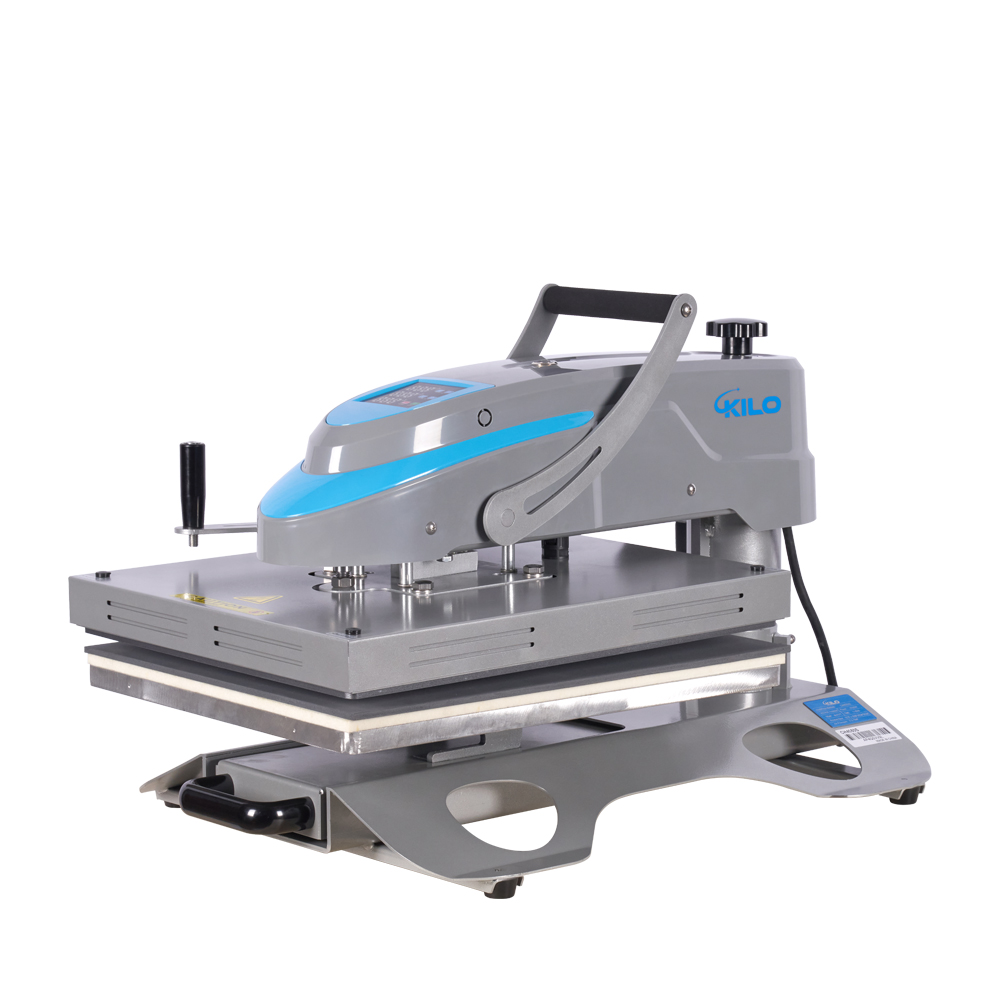

16×24 Manual Swing Head Heat Press Machine
$886.93
8 in stock
Features:
- Heat press machine for single-position manual operated
- Bright, large LCD wide a wide viewing angle heat press machine
- High Quality Large Format Sublimation Heat Press Machine
- Self-pressure balancing system heat press machine
- Multiple time settings heat press machine
- Teflon surface sprayed
- Heat press machine using eccentric bearing technology, the pressure is several times

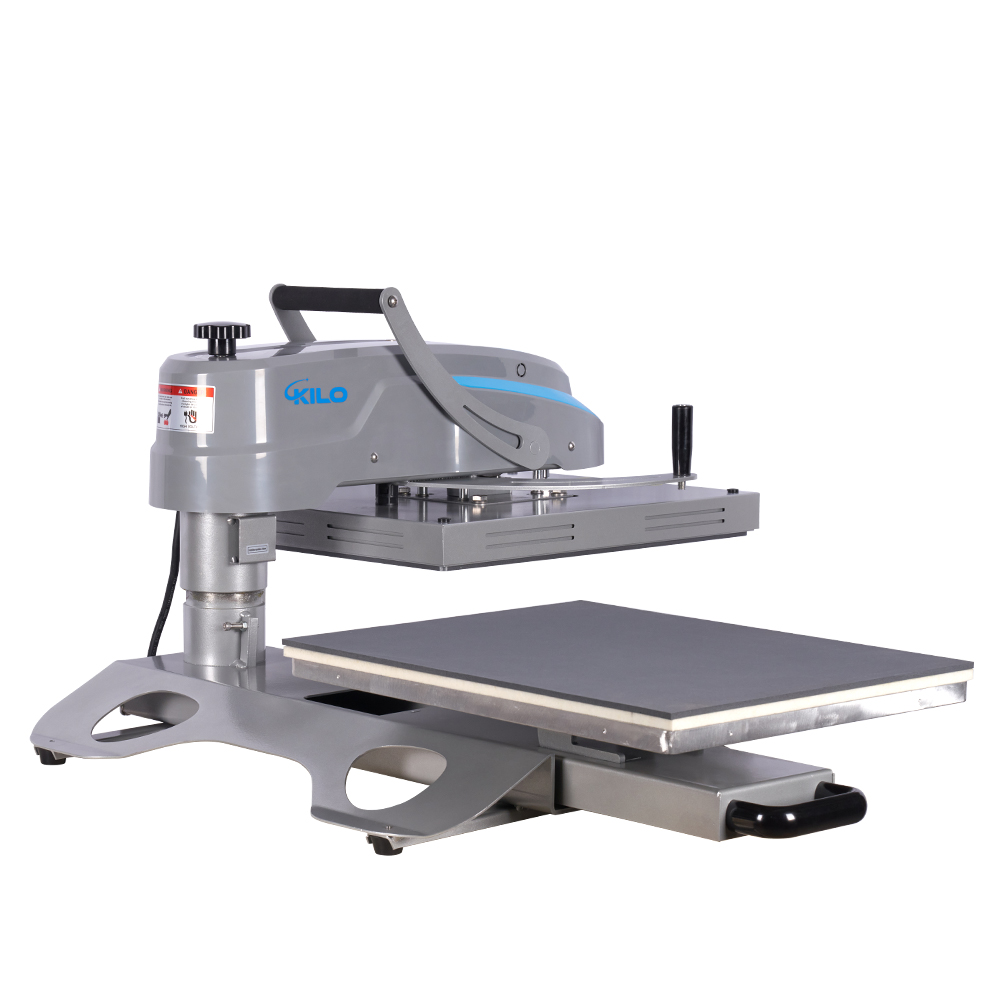

- The swing head angle is for 90° the biggest
- Heat press machine with base frame for much stable printing
16″ x 24″ Swing Head Manual Heat Press Machine
- Heat press machine is full digital integrated display control;
- High accuracy of signal indication when press process is completed;
- Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
- Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;
- Large format heat press machine is optional Infrared ray positioning
- Teflon surface sprayed
- Heat press machine for lifetime factory on-line service
- Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure
- Heat press machine is automation print once backside inductive screw touched
- 6CM pressure adjustable range can process a wider of products
Technical Details
| Voltage(V): | 110V/60HZ |
| Power(KW): | 1.5 |
| Temperature(℃): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 143.3 |
| Packing size(in”): | 31.5″ X 20.9″ X 23.6″ |
| Accept Thickness: | Max. 2.36″ Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16″ x 24″ (40 x 60cm) |
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Ceramics Time: | 180s |
Temperature requirements of different materials.
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Key ring pendant | 356℉ (180℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
| Weight | 132.30 lbs |
|---|---|
| Dimensions | 30.31 × 18.90 × 19.69 in |
| Place Of Origin | China |
| Color | Blue+Grey |
| Material | Aluminium |
| Is OverSize | No |
| Packages | 1 |
