Features:
- Full digital integrated display control, temperature, time, counting
- Aluminum heat plate with die casting heating pipe
- 2.36” pressure adjustable range can process a wider range of products
- High accuracy of signal indication when press process is completed
- Multiple time settings heat press machine
- Sliding heat plate head design
- Easily adjust the certain pressure

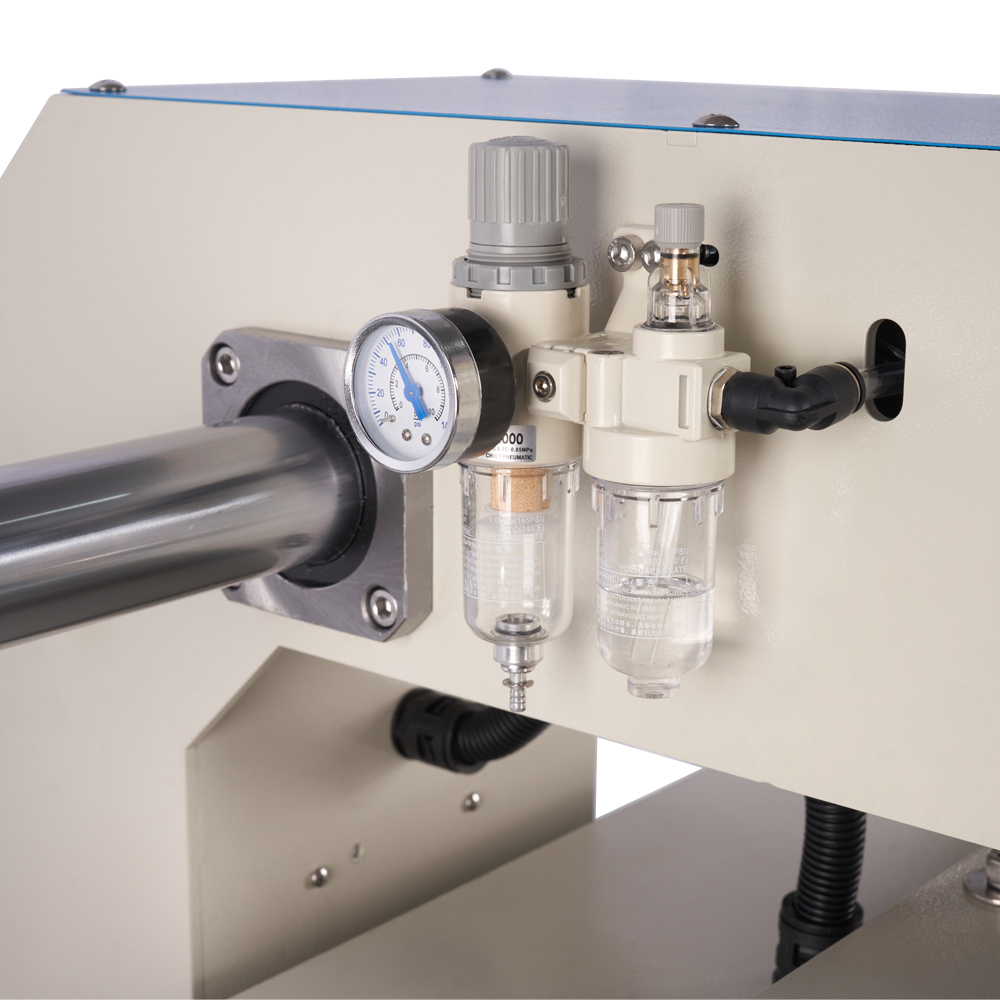

- Powered by an air compressor ( not included)

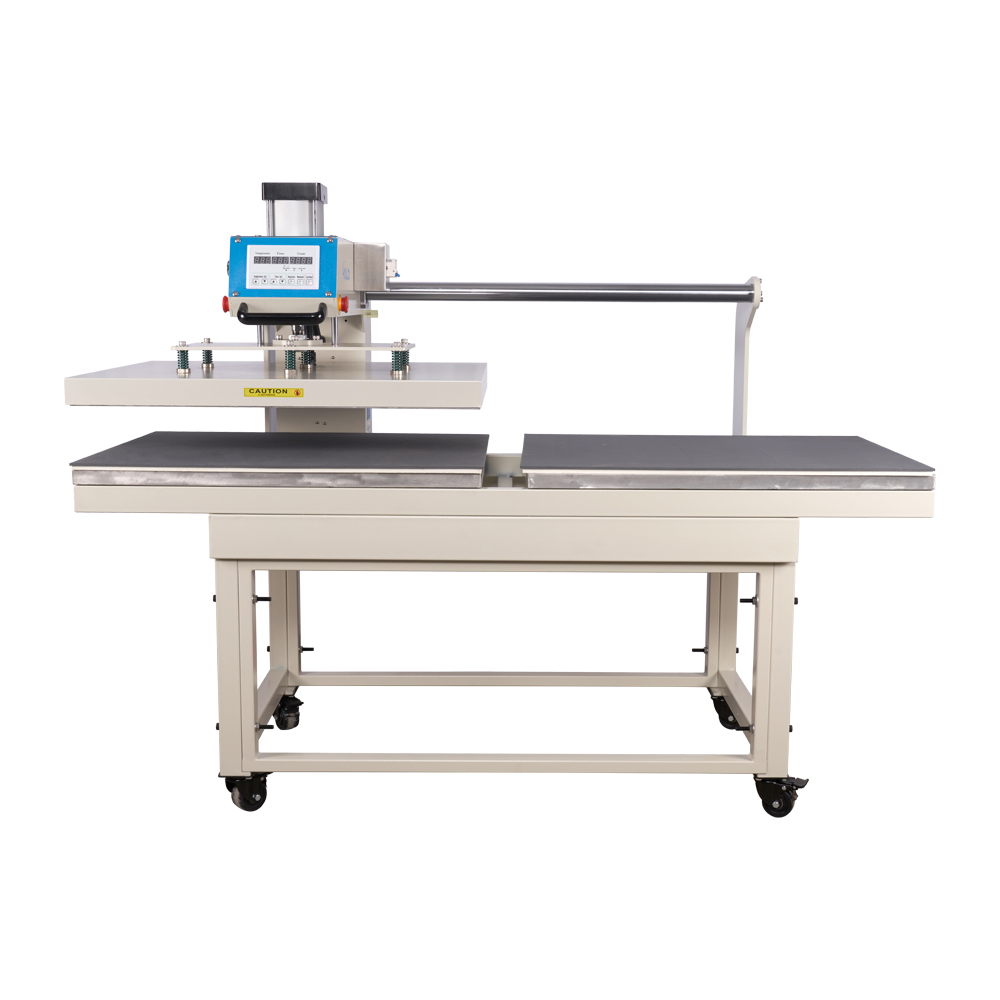

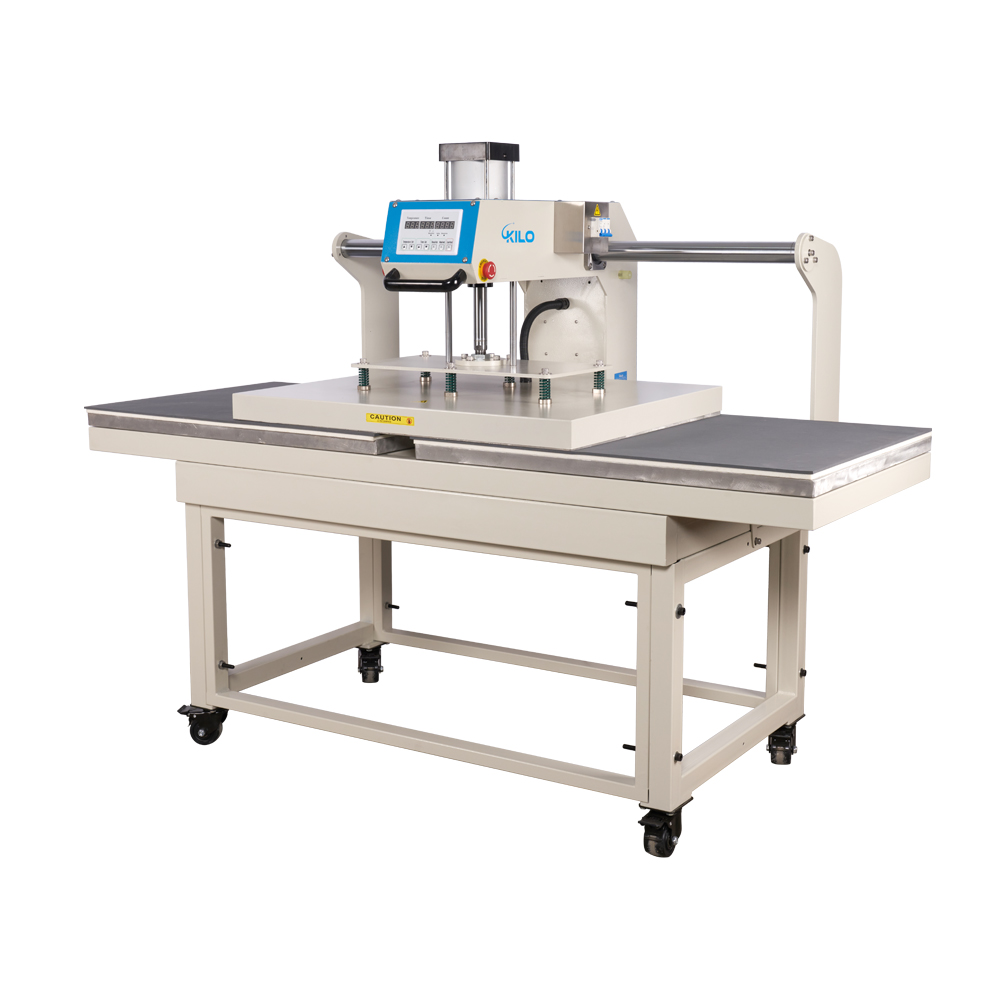

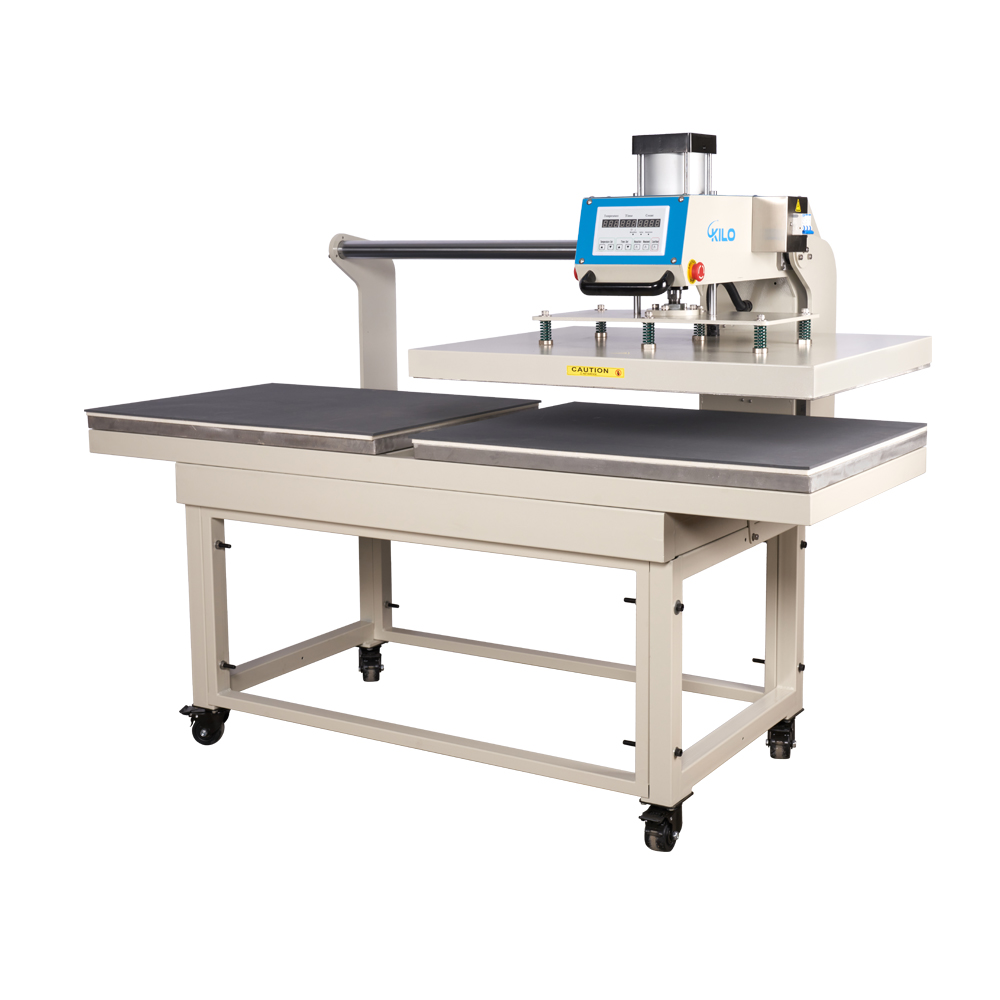

Upper Slide Pneumatic Double Position Hot Stamping Machine

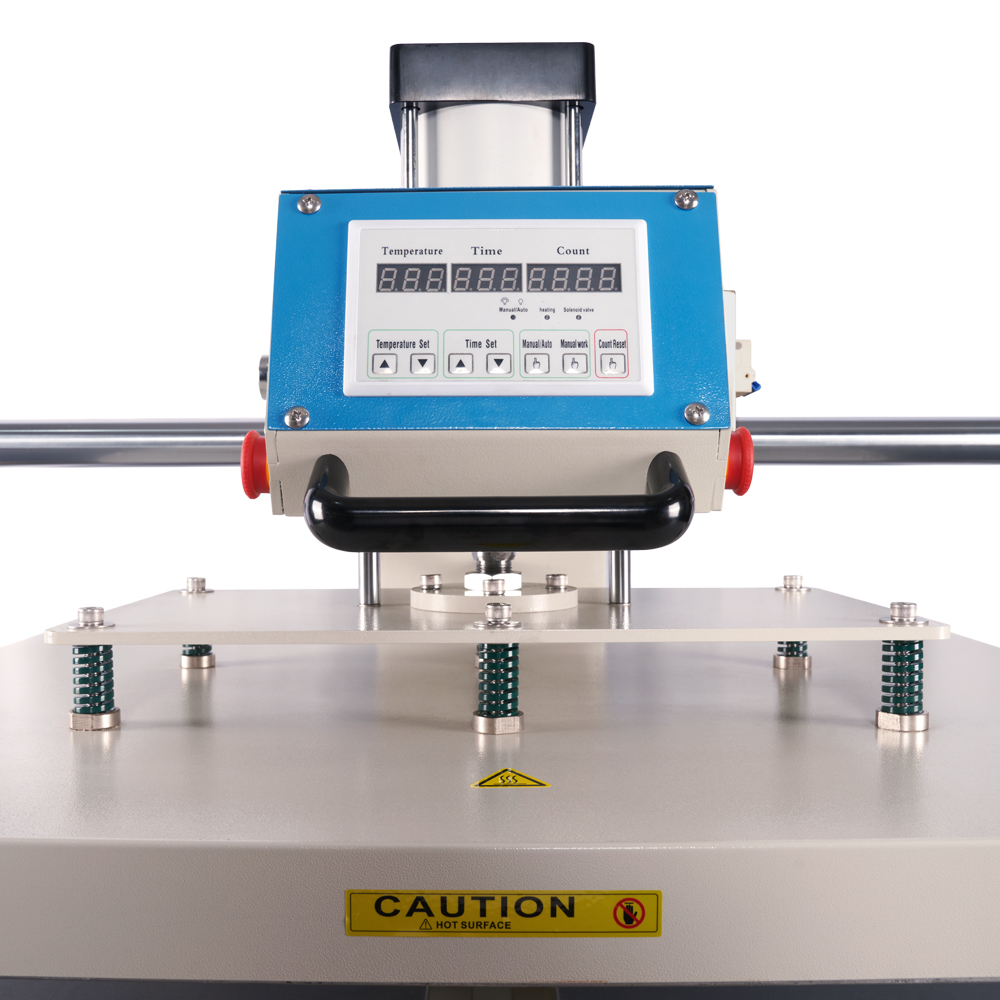

- Heat press machine is full digital integrated display control;
- High accuracy of signal indication when press process is completed;
- Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
- Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;
- Special high temperature cloth for hot stamping machine covered
- Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure
- Heat press machine is automation print once backside inductive screw touched
- Left and right side bearings parallelly move the heat press machine
Remarks: Items numbered 1,5, 6,7,and 8 are additional accessories intended for replacement. Please ensure that they stored or maintained appropriately.
Technical Details
| Voltage(V): | 220V/ single phase |
| Power(KW): | 7 |
| Temperature(?): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 396.9 |
| Packing size(in’): | 76.8″ x 37.4″ x 37.45″ |
| Accept Thickness: | Max. 2.36″ Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 28″ x 35″ (70 x 90cm) |
Time Requirements of Different Materials
| Pure cotton | 15s-25s |
| Polyester | 40s |
| Chemical fiber | 10s-40s |
| Pearl board | 60s-100s |
| Metal pendant | 60s |
| Mousepad | 50s |
| Vitrolite | 180s |
| Key ring pendant | 100s |
| Ceramics | 180s |
| Material | Temperature |
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
