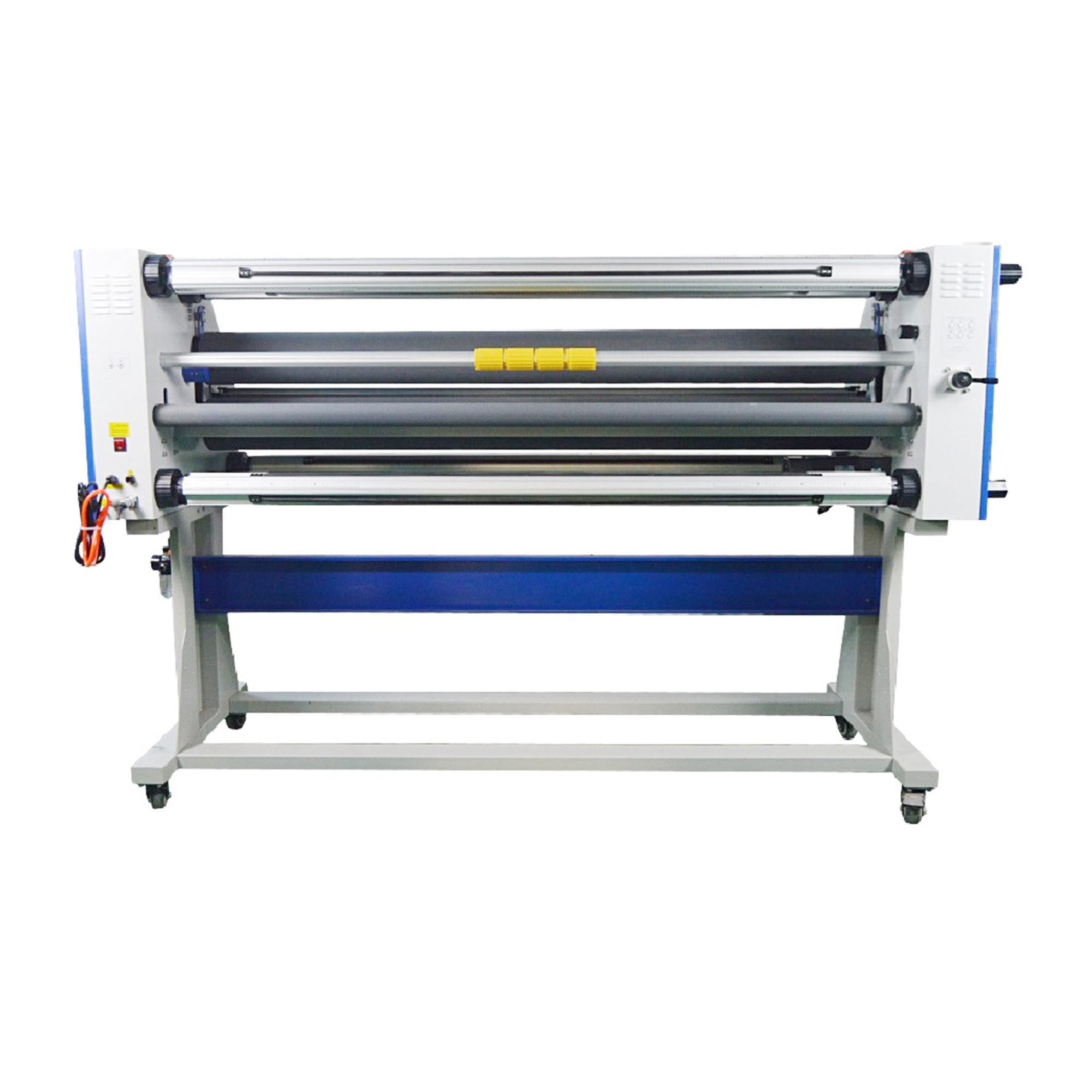

67″ Full-Auto Wide Format Cold Laminator Machine Heat Assisted & Trimmer

Features:

1. The Max laminating width of this product is 65inch (1650mm)
2. The Max laminating thickness of this product is1.89 inch (48mm)
3. The Max speed of this product is 65 ft/min (20m/min)
4. Heating method is cold & hot, with digital display

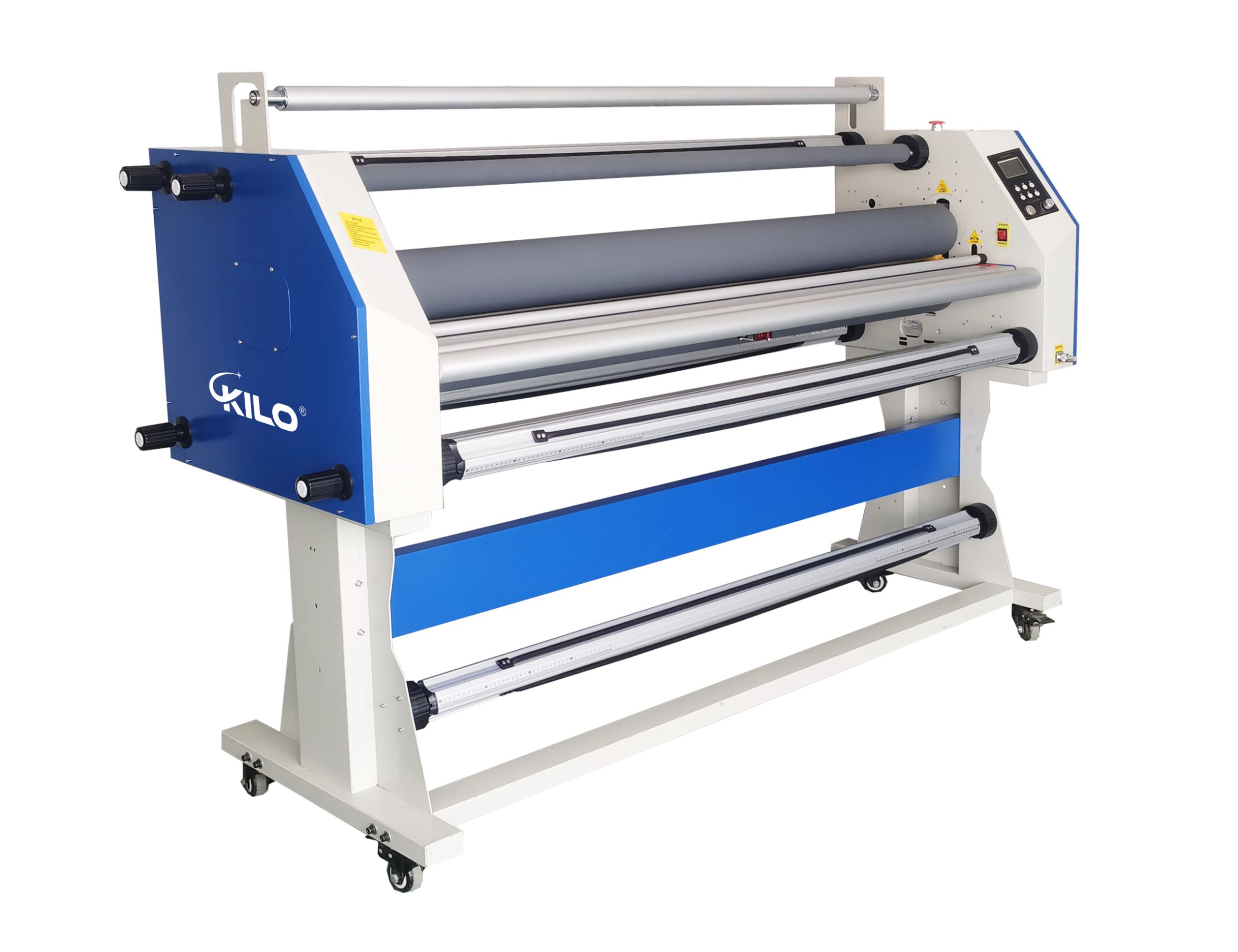

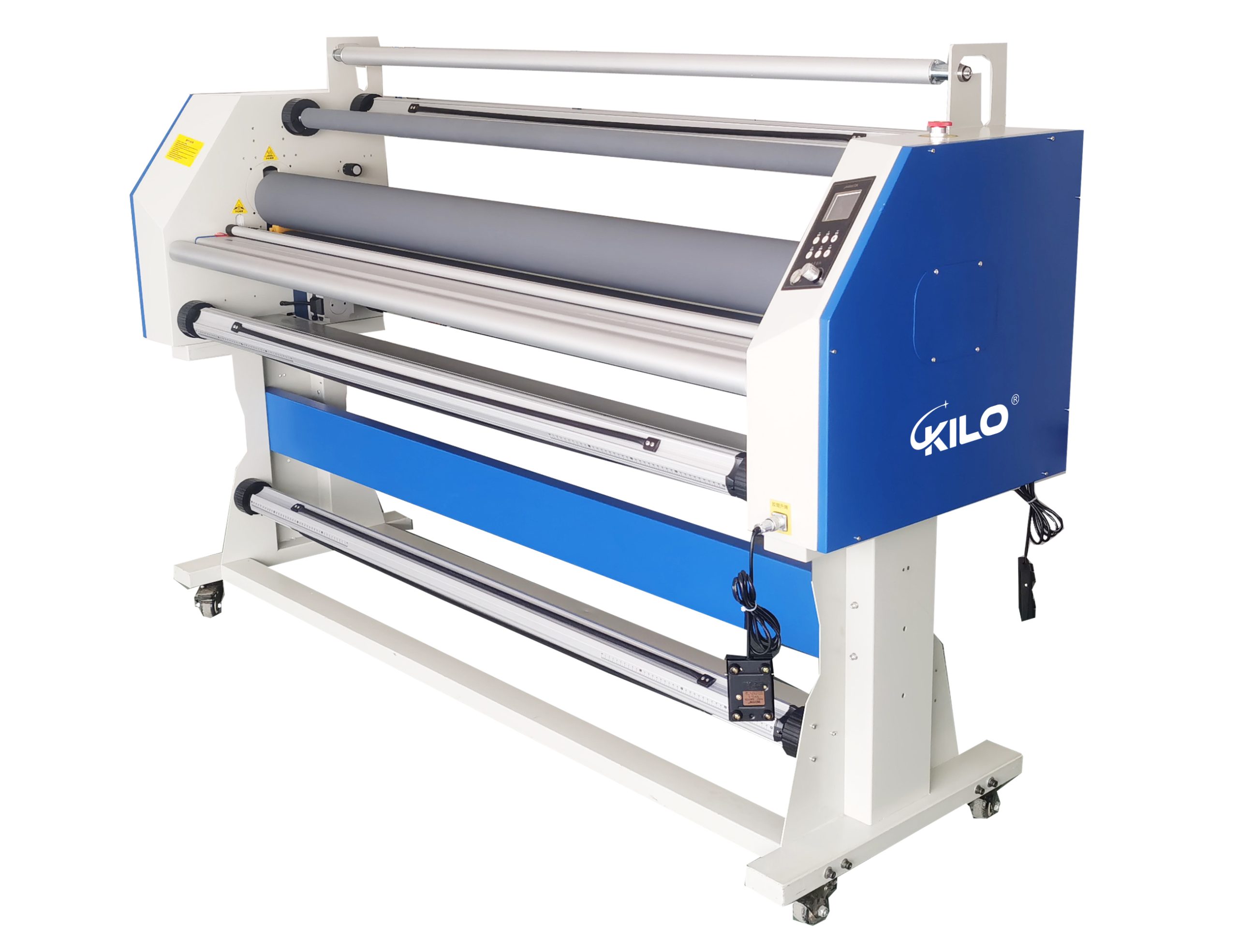

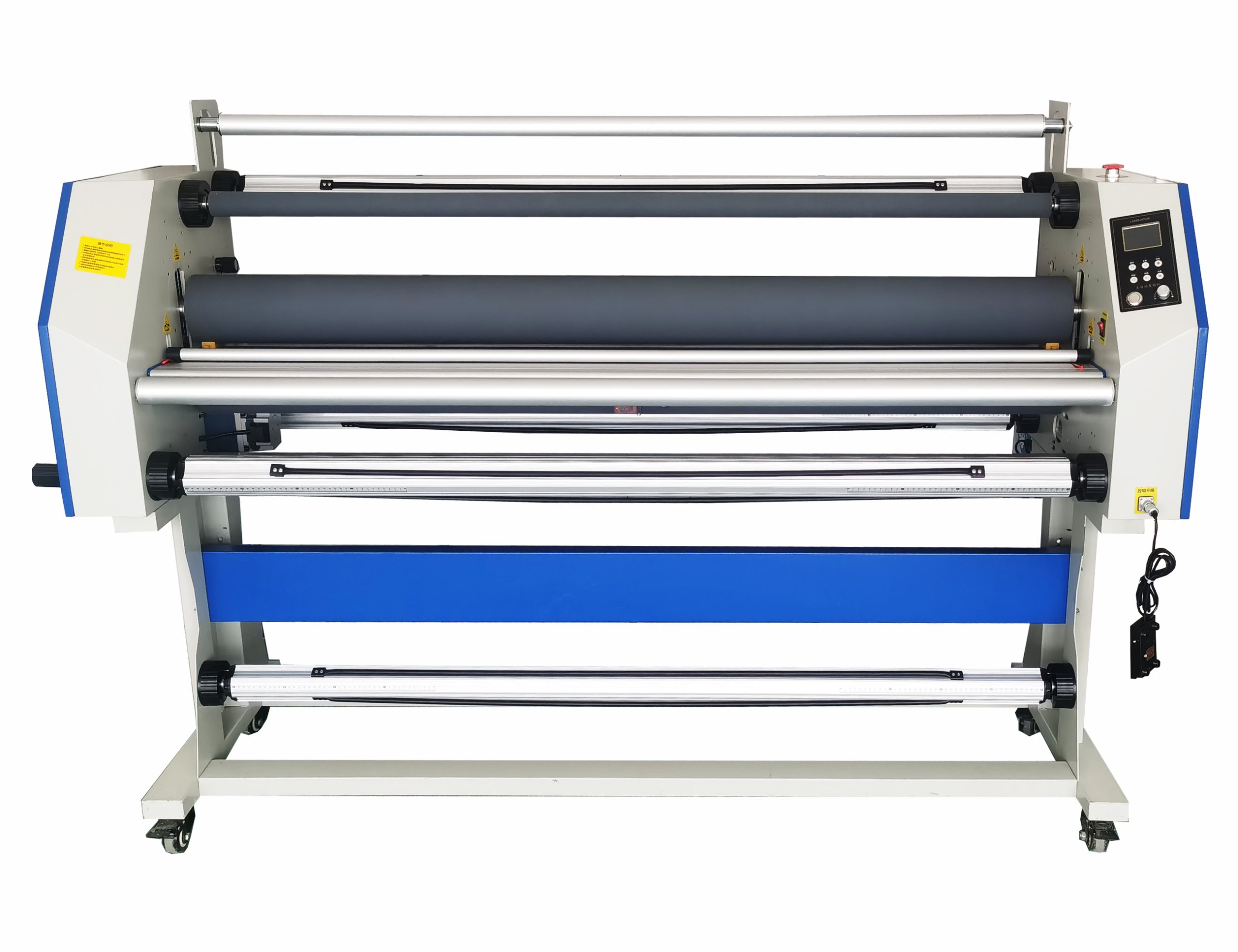

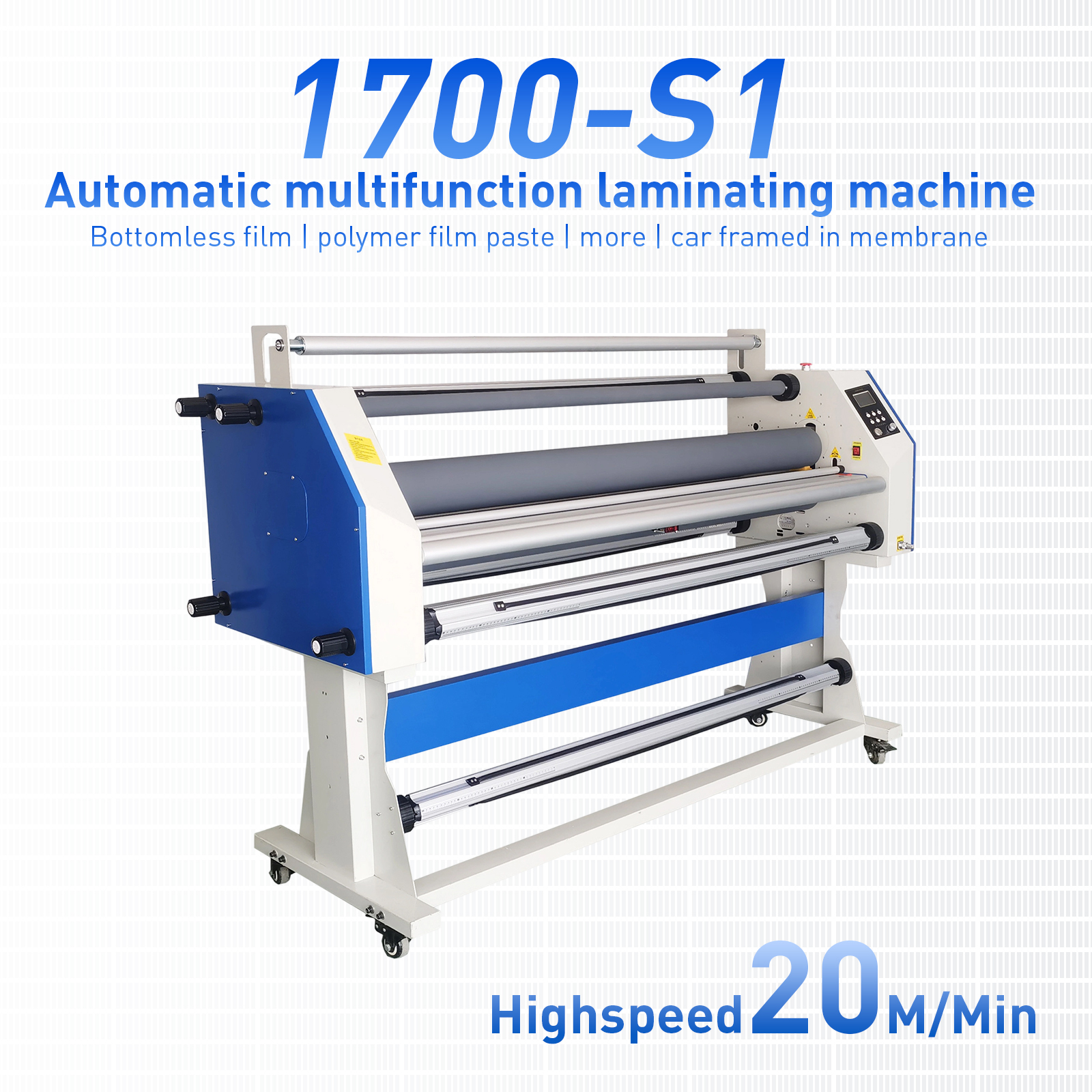

KL1700-S1 is a full-auto wide format cold & hot roll laminator can finish wide format graphics up to 67 inches.
Max laminating speed is 65 ft/min (20m/min), which is higher than other models.

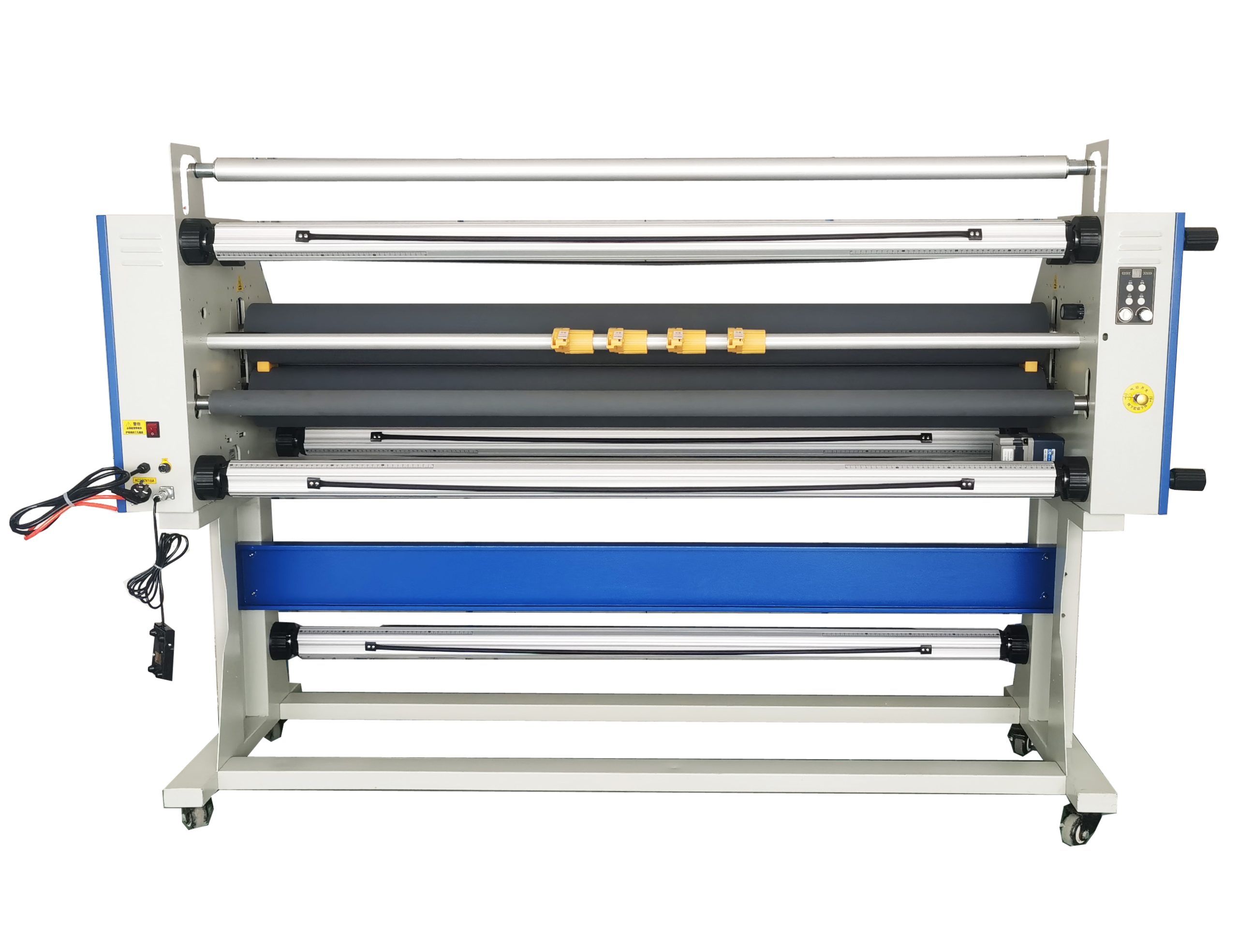

This laminator equipped with four trimers with micro-adjust structure ensures accurate cutting position.
Infrared ray of safety deflector device, which makes sure the safety of the operator.

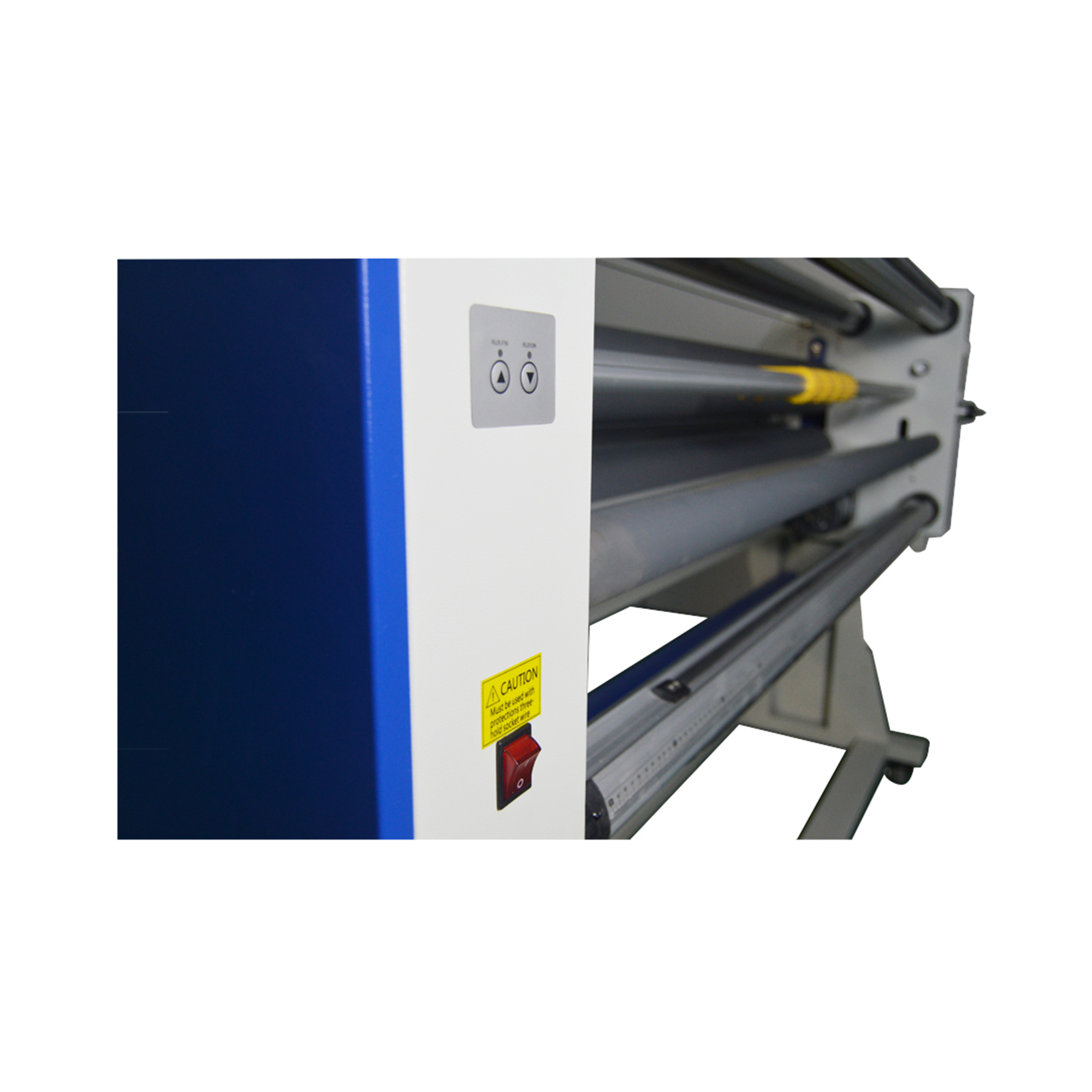

There are operation buttons on KL1700-S1 laminator’s both front and back for easy operation.

Product Details

1. Top and bottom rollers
The top roll and bottom roll are one of the most important parts of the film covering machine, whose material is silica gel. Silica gel has the
characteristics of high-temperature resistance, wear resistance, corrosion resistance, and non-sticky.

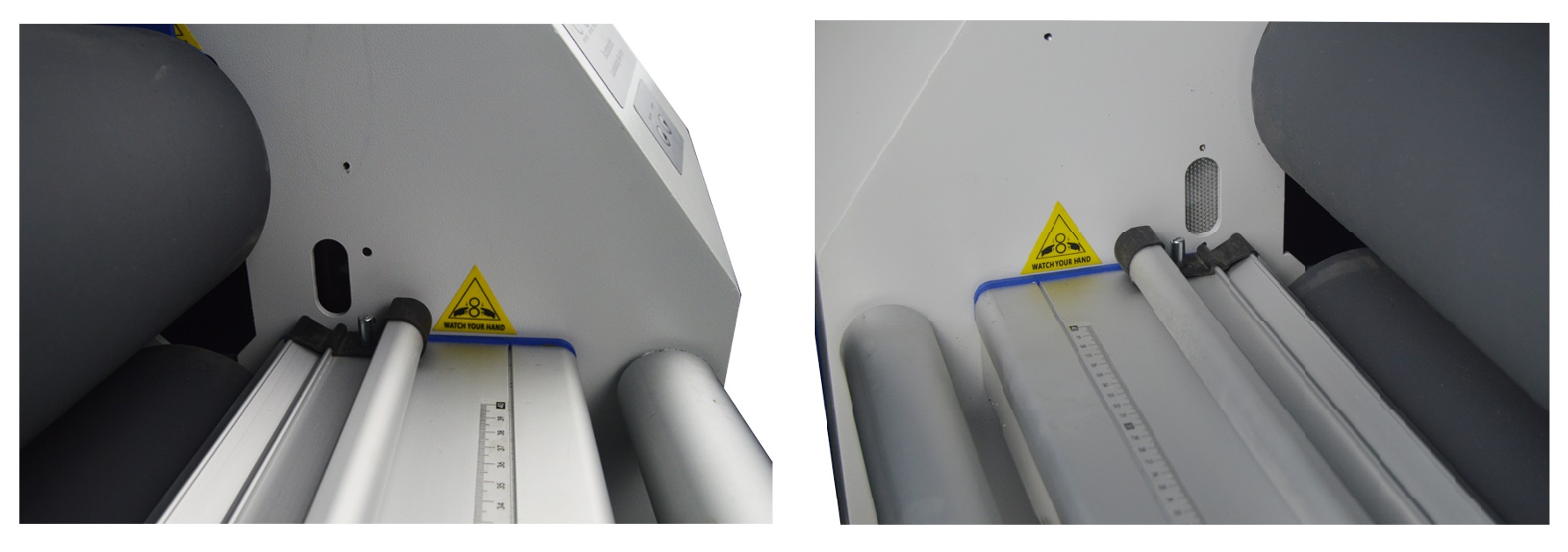

2. Drawing axis, film axis, paper axis, and finished product axis
The four mandrels are composed of aluminum rods, aluminum heads, bearings, rubber strips, and other components. The outer diameter is
controlled within 3 inches, which facilitates the loading and unloading of conventional film products on the market, such as yellow film, laminating film
and so on.

3. Pneumatic switch and cylinder
The pneumatic switch has upper, middle and lower three models. In the case of air in the equipment, the top roll can be lifted up, the top roll can be
lowered down, and the middle gear can temporarily lock the air inflow and output. The cylinder type of this equipment is SDA50-30, which makes the
lifting height of top roll more than 28 mm.

4. Emergency stop switch
When the machine is in an emergency or dangerous state, the power supply can be cut off by the emergency stop switch and the equipment can be
stopped to protect the safety of the person and equipment.

5. Cutters
The use of cutting knife can make it possible to cut vertically and white edges at the same time in the process of film covering.

6. Tighten your grip
The tightening handle is mainly used to adjust the tightening force of four mandrels. Before leaving the factory, the four handles have been debugged
accordingly. Users can use them directly. The tightening force is increased by twisting clockwise; the tightening force is reduced by twisting
counterclockwise.

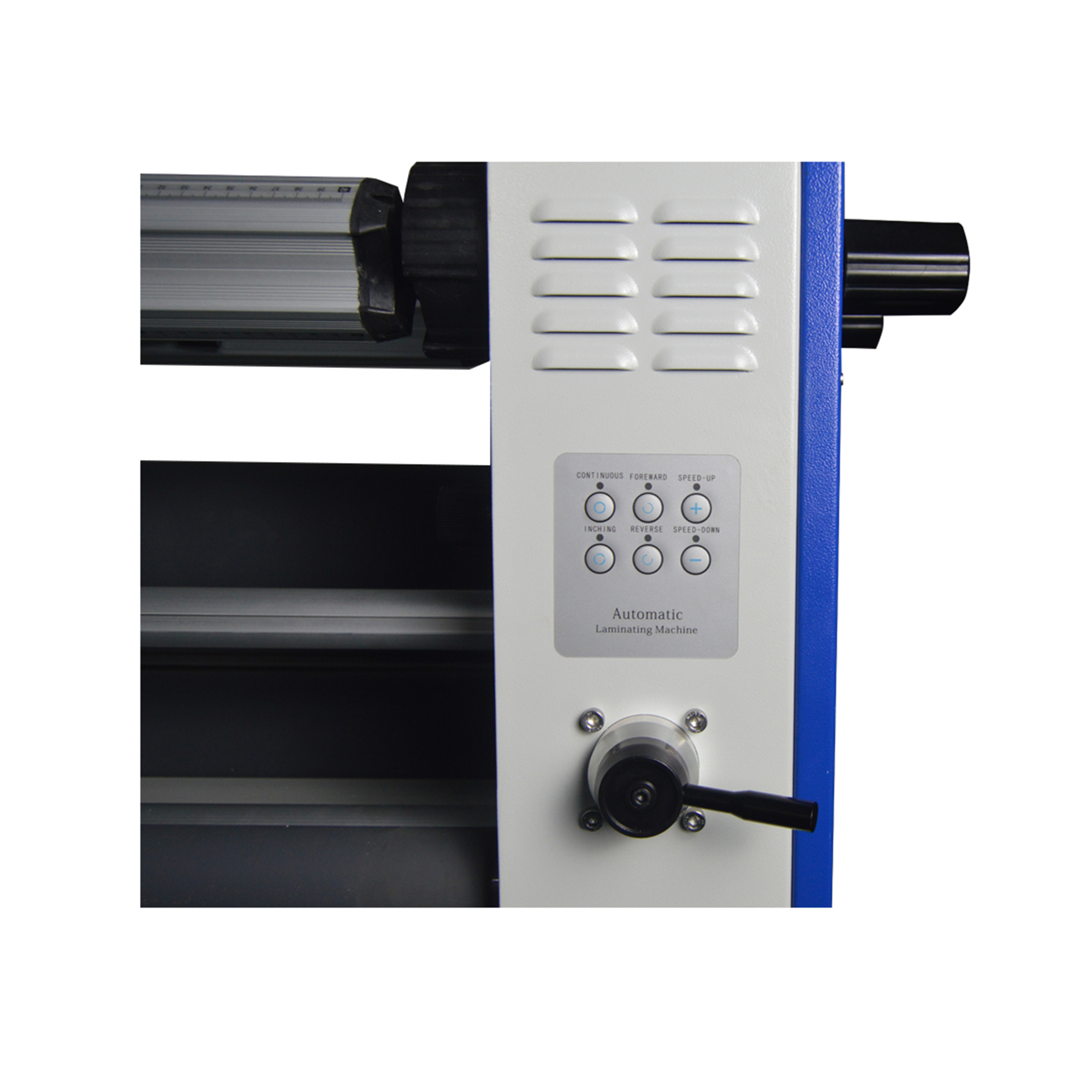

7. Operation Panel.

Applications:
This laminator with heat-assisted can be widely used for pre-masking vinyl graphic, mount prints on the substrate, over laminating inkjet prints and so on. The cold laminator is used to after printing. Available for photographic, Ad. Shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.

Parts List

Technical Parameters
